Tallest tall feet??

Post by JohnB » Thu Jan 31, 2008 4:23 pm

Check these babies out. At their shortest they are 4.5" long & they extend up to 7"!! Width is 1.5" at the upper section so they should fit under the machine nicely.

I already know how I'll change the large stud to the smaller V2 size so I just have to decide if I want to reduce the height. A range of 3"-5" might be nice.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Thu Jan 31, 2008 4:39 pm

:shock:

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Thu Jan 31, 2008 5:10 pm

Niko wrote::shock:
Yes indeed! If I went with the full 7" height I could create a storage area UNDER the Vivaldi.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Thu Jan 31, 2008 5:22 pm

Who needs cabinets when you can store everything under the Spaz?
Hell, you can park your car under it :lol:

Hurry up and post some pics with them on! 8)

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sun Feb 03, 2008 10:35 am

I should be finished modifying & painting the new legs later today. I'm staying with the 7" height & will probably end up using every bit of it. I had to hit lots of stores but I finally found a nice sliding storage area that will fit under the machine. That will get painted today also so I should have pics of the new set up & expanded JB's coffee world in a day or two.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

User avatar
chas
Vivaldi Dreamer
Posts: 2721
Joined: Wed Jun 02, 2004 11:52 pm
Location: Central Maryland
Contact:

Post by chas » Sun Feb 03, 2008 11:52 am

Do you have the drip tray plumbed in? With mine, thanks to the hole in the chassis under the 3-way, I get water that misses the tray and drips through that hole. I'd never be able to store anything under there.

In my case having the VII taller would just mean being able to get under there and clean the mess off the counter without having to move the machine!

In all honesty I will say that I think I have an assembly issue with my VII. On my S1 the 3-way tube is longer than on my VII. If the VII 3-way tube was the same length as the S1, I think the amount of liquid missing the drip tray would be negligible and I would have little, if any, leakage onto my counter.

Check out the link below. Part the way down the page is a picture of the S1 and VII side by side showing the difference in the 3-way tubing length. Given the hand made nature of these machines, your mileage may vary but I'd be interested to know how many of you also got "short tubed" on your 3-way.

http://www.s1cafe.com/s1v2/S1vsVII.php
Chas
LM GS/3 & LaSpaziale Dream v 1.23 (US 120V)
Mazzer Kony E, Customized Rocky
Hottop P/B

Richard
God Shot
Posts: 135
Joined: Mon Aug 06, 2007 2:45 pm
Location: Boston

Post by Richard » Sun Feb 03, 2008 12:22 pm

Where did you find those feet?
Richard J. Wyble

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sun Feb 03, 2008 12:25 pm

Mine is pretty much like yours, maybe 1/4" longer but I haven't had any noticeable leakage on the counter. With the drip tray extension right under there I'm surprised you get so much leakage. Since it's just a copper pipe why not bend it forward slightly so it aims more directly into your d/t? I plan to have my knock box in the storage drawer right in this same area so if any water does get by the tray it will just drip into the k/b which gets emptied daily.

I forgot to add that my d/t is not plumbed in so no issues there.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sun Feb 03, 2008 12:35 pm

Richard wrote:Where did you find those feet?
Chris at CC recommended them as a better alternative then the wider LaSpaziale tall feet. He had 4 laying around, no idea if he has more. Cost was $40 + sh for the set. Keep in mind that they come with a much larger threaded stud & will not attach to our machines unless the upper portion is replaced with the correct M6X1.00 stud. I have a cut off saw, plasma cutter, mig, bead blast cabinet & paint booth so playing with stuff like this is fun. If you don't have a well equipped shop modifying the legs could be a problem.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

RGoldman
Ristretto
Posts: 90
Joined: Thu Jan 18, 2007 5:22 pm
Location: Washington
Contact:

Post by RGoldman » Sun Feb 03, 2008 2:02 pm

chas wrote:Do you have the drip tray plumbed in? With mine, thanks to the hole in the chassis under the 3-way, I get water that misses the tray and drips through that hole. I'd never be able to store anything under there.

In my case having the VII taller would just mean being able to get under there and clean the mess off the counter without having to move the machine!

In all honesty I will say that I think I have an assembly issue with my VII. On my S1 the 3-way tube is longer than on my VII. If the VII 3-way tube was the same length as the S1, I think the amount of liquid missing the drip tray would be negligible and I would have little, if any, leakage onto my counter.

Check out the link below. Part the way down the page is a picture of the S1 and VII side by side showing the difference in the 3-way tubing length. Given the hand made nature of these machines, your mileage may vary but I'd be interested to know how many of you also got "short tubed" on your 3-way.

http://www.s1cafe.com/s1v2/S1vsVII.php
When I was having a problem with my three way valve dripping, I was getting a lot of water on the counter. I slightly bent the copper tubing to make it drip into the tray and problem solved! Well, that and disassembling the three way valve to clean it out....

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Mon Feb 04, 2008 7:54 pm

I had the tall feet on the S1 today & it looked pretty cool but I wasn't happy with the stability. I can see what needs to be changed & will be working on t/f version 2 tomorrow.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Wed Feb 06, 2008 3:15 pm

chas wrote:Given the hand made nature of these machines, your mileage may vary but I'd be interested to know how many of you also got "short tubed" on your 3-way.
I didn't get short-tubed on the VII but I had to really bend it so the drip tray would catch the discharges. My S1 arrived perfectly normal without having to bend it.


Any word on those taller feet, John?

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Wed Feb 06, 2008 6:36 pm

I finished redoing/repainting them today so I should have them on the machine tomorrow if I don't hit anymore snafus. Pics will follow.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Wed Feb 06, 2008 7:10 pm

Good, looking forward to seeing it on high heels :P

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

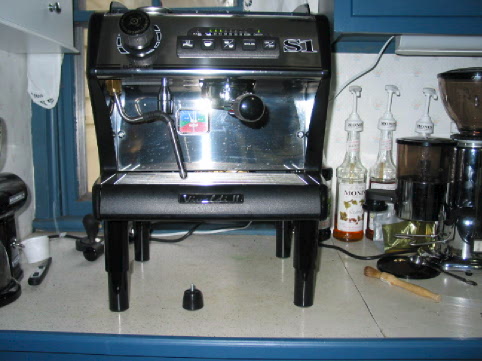

King Vivaldi Assends the Throne!

Post by JohnB » Thu Feb 07, 2008 3:47 pm

This is about an inch taller then it will sit when I get the storage area under it. When thats finished I'll post picks in my thread on the Pride Page.Image
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Weska
Barista
Posts: 336
Joined: Fri Jun 02, 2006 12:33 pm
Location: Moscow

Post by Weska » Thu Feb 07, 2008 5:11 pm

Enviable. I'm working on getting mine higher too, but I'm setting up a taller countertop on the standard legs. (Still, one could always go even higher.)

Niko

Post by Niko » Thu Feb 07, 2008 5:41 pm

Very nice. 8)
Way too tall for my needs, I'd be happy with the 3.25" Spaziale feet that comes standard with the larger commercial units. I'd like just enough clearance to swipe my hand under the machine to wipe the countertop clean.

It's still a cool thing to see a Circus Freak Spaz like that your counter :wink:

Richard
God Shot
Posts: 135
Joined: Mon Aug 06, 2007 2:45 pm
Location: Boston

Post by Richard » Thu Feb 07, 2008 6:51 pm

Niko wrote:'d like just enough clearance to swipe my hand under the machine to wipe the countertop clean.
Same here. Taller legs would also provide a much improved slope to the drain line between the drain box and the hole in the countertop.
Richard J. Wyble

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Thu Feb 07, 2008 8:41 pm

Keep in mind that these legs adjust down to 4.5" high. 1" taller then the LaSpaz tall feet. I set them tall so I'd have room to install the drawer assy tomorrow but once thats in place I will drop the height so there is no gap showing between the counter/drawer/machine.

The LaSpaz feet are 2.5" wide whereas these are only 1.5". Chris thought the L/S feet would look pretty odd on our machines as they will stick out on the sides. If you try to move them in further the mounting stud will foul the drip tray. I like the way these fit under the machine in the same cut out as the stock feet & I also like being able to put the space under the machine to good use.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sat Feb 09, 2008 9:24 am

Both my wife & I are surprised by how much more user friendly the machine feels at the raised height. No more reaching down or squatting to see the pour out of the bottomless p/f. Working with the machine feels more natural & comfortable now.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Weska
Barista
Posts: 336
Joined: Fri Jun 02, 2006 12:33 pm
Location: Moscow

Post by Weska » Sat Feb 09, 2008 4:29 pm

I expect higher is a lot easier. A lot of bars have a the espresso machine on a riser at the back of the counter and a lower work surface directly in front. Your legs are that riser.

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sat Feb 09, 2008 4:47 pm

I really noticed the difference today when I was steaming some milk. I had lots more room to move the pitcher around & could use the S5 wand straight down.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sun Feb 10, 2008 4:17 pm

The pics of the new set up are up on the Pride Page.
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Sun Feb 10, 2008 9:16 pm

Thanks, John :thumbleft:
Looks very nice.

User avatar
JohnB
Vivaldi Dreamer
Posts: 2249
Joined: Sat Dec 29, 2007 12:01 pm
Location: Northeastern Ct.

Post by JohnB » Sat Feb 23, 2008 10:30 pm

Niko - Did the promised commercial feet ever show up from La Spaziale?
Speedster/Bosco Sorrento/ K10WBC/K30/Bunnzilla
KvdW/Pullman/RB Tampers
Hario NCA 3 & 5s/Wooden Neck Dripper/Buono
Zassenhaus Knee Mill
Modded Hottop B

Niko

Post by Niko » Sun Feb 24, 2008 12:32 am

No.
And I completely forgot about them :(
